Repair Summary
This article gives detailed instructions on repairing the instrument cluster in a BMW E46 3 series vehicle. Even though we used a 2003 325i to perform this repair, this article can be applied to any 1998-2006 3 series vehicle with minor modifications to the repair steps.
See all vehicles this article applies to
E46 3 Series 325ti
E46 3 Series 318td
E46 3 Series 320td
E46 3 Series 318ti
E46 3 Series 330xi
E46 3 Series 330i
E46 3 Series 330xd
E46 3 Series 330d
E46 3 Series 316ti
E46 3 Series 328i
E46 3 Series 325xi
E46 3 Series 325i
E46 3 Series 320i
E46 3 Series 323i
E46 3 Series 320d
E46 3 Series 318i
E46 3 Series 318d
E46 3 Series 316i
E46 3 Series M3 CSL
E46 3 Series M3
E46 3 Series 330Ci
E46 3 Series 330Cd
E46 3 Series 325Ci
E46 3 Series 323Ci
E46 3 Series 320Ci
E46 3 Series 320Cd
E46 3 Series 318Ci
E46 3 Series 328Ci
E46 3 Series 316Ci
E46 3 Series 323i 2.4
E46 3 Series 316i 1.9
E46 3 Series 316i 1.6
BMW E46 instrument cluster failure is a common occurrence, often due to improper jump starting or charging of the vehicle's electrical system.
One of the most popular "Oh...< insert four-letter word here>" moments for a BMW E46 3 series owner is trying to start their vehicle and experiencing a complete failure of their instrument cluster. We mean a complete failure; every dash light (except for the ABS light), every gauge, and a complete engine "no-start".
The good news is (well...depending on how you define good news) is that a BMW E46 instrument cluster failure is a pretty common occurrence, and is an easy fix. The bad news is it's going to cost you about 150 bucks, a box, some bubble wrap, and a trip to FedEx.
According to our friends at Automotive Circuit Solutions, "just about all" of the BMW E46 instrument clusters they receive for repair are due to a blown capacitor on the circuit board. A technician at ACS told us that "There is a capacitor on the circuit board that stabilizes energy flow. An abnormal increase in voltage can cause this capacitor to blow, leaking acid onto the circuit board and destroying the traces. The most common reason for a blown capacitor is improper jump-starting or charging."
Diagnosing a BMW E46 Instrument Cluster Failure
A blown capacitor in your E46 instrument cluster leaves behind some telltale signs. The entire instrument cluster will "go dark", meaning no lights or gauges will spring to life when the key is turned on (except for the ABS and "sometimes" the seatbelt lights). Furthermore, the engine will not start when the key is turned.
Before removing your instrument cluster and shipping it off for repair, we strongly advise checking the fuses and the power supply to the instrument cluster. This is a simple diagnostic procedure that we walk you through in the following repair steps.
The BMW Repair Guide strongly recommends sending your damaged instrument cluster to a professional repair service that specializes in automobile circuit board repair. The BMW Repair Guide uses Automotive Circuit Solutions, but there are other companies available online. Unless you have expert knowledge in repairing printed circuit boards (PCBs) the BMW Repair Guide strongly recommends not trying to fix the instrument cluster yourself.
Do yourself a favor and just send it to the pros for repair. It's quick, easy, and you will rest better at night knowing it was repaired correctly.
View the detailed parts diagram for this repair.
Includes detailed part diagrams, part numbers and links to purchase all of the required components needed to complete this repair.
Before starting this repair, you must have the following required parts.
Section 1 - Checking Fuses and Testing Power Supply

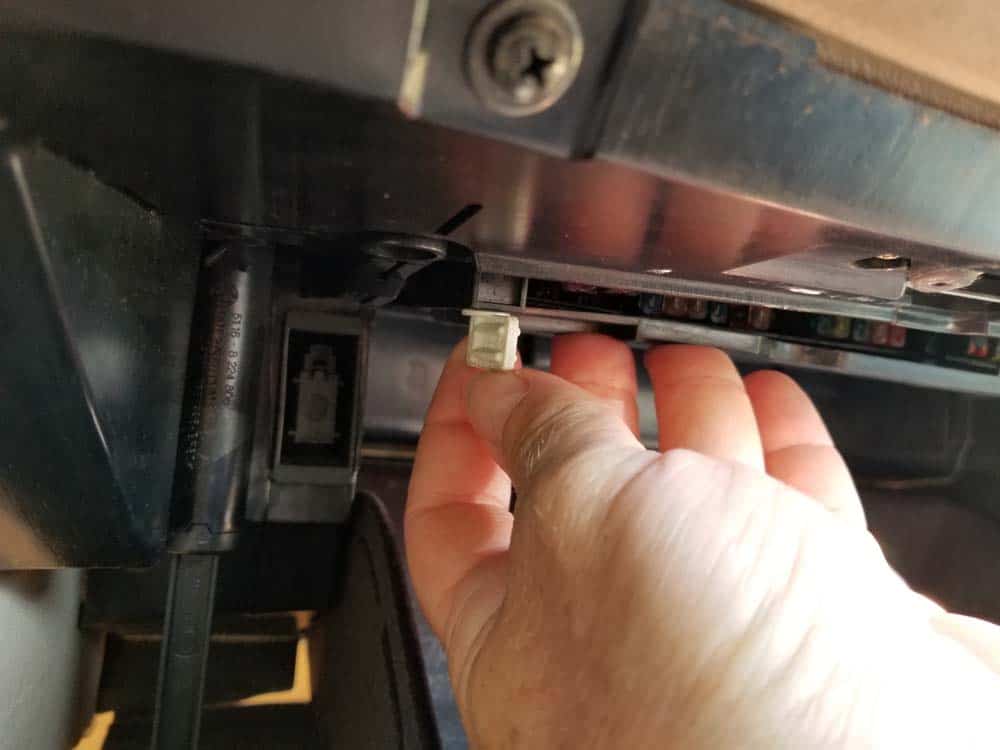

- It is always good practice to check the fuses and test the power supply to the bmw e46 instrument cluster before sending it off to be repaired. The fuses that supply current to the instrument cluster are located in the glove box fuse block. To access them, locate the two white tabs inside the glove box. Turn them both 1/2 turn to release the fuse block.

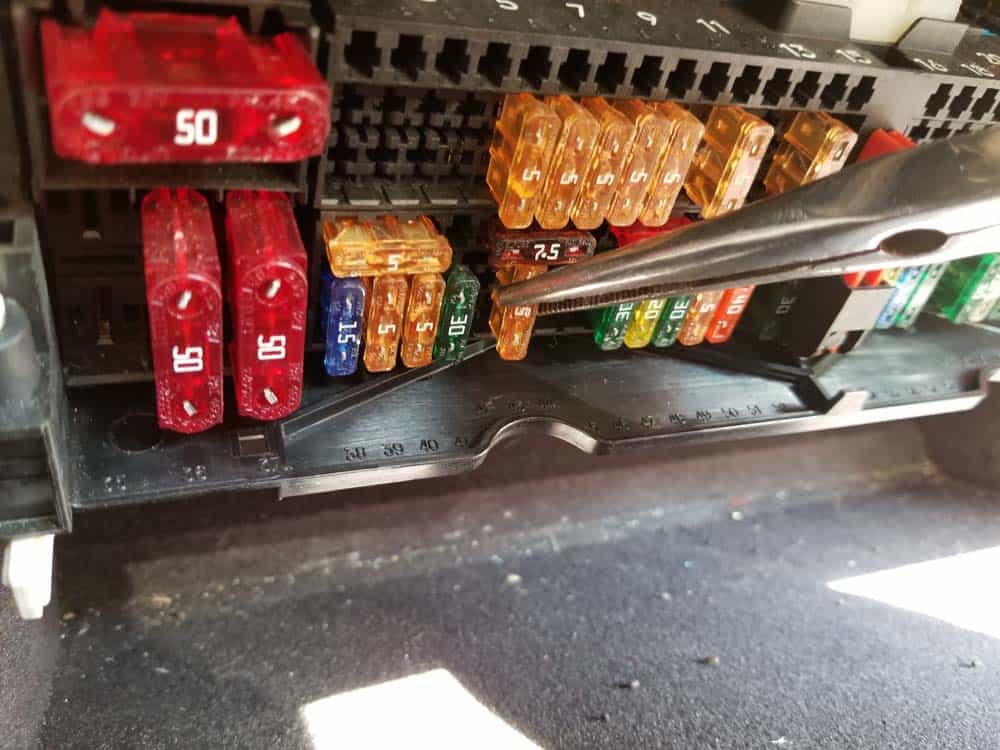

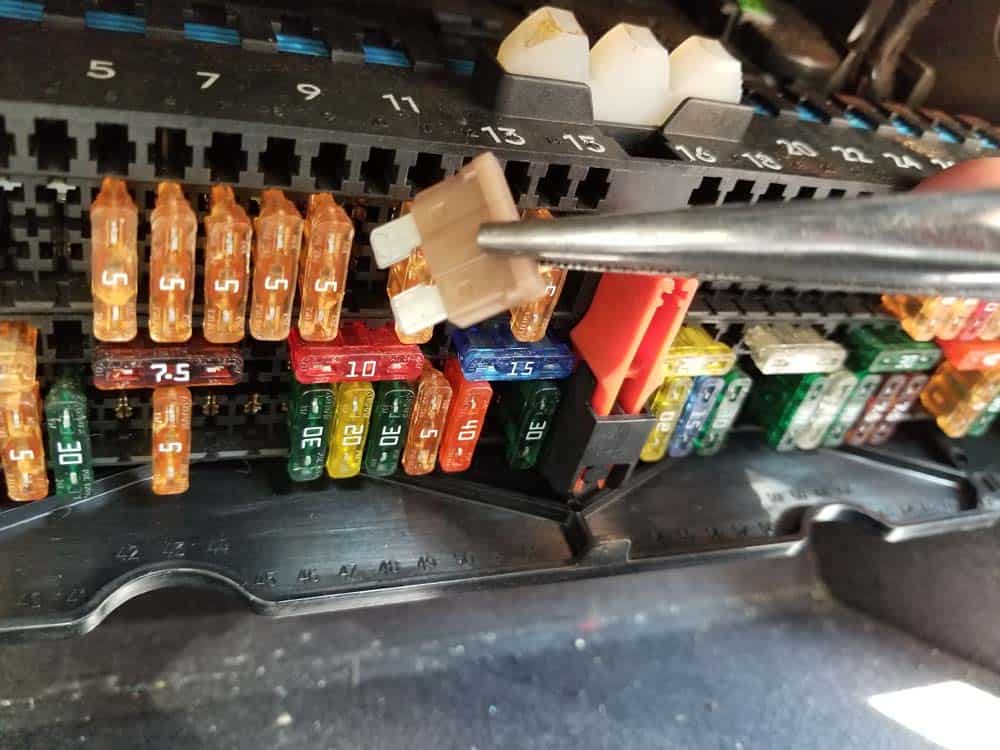

E46 glove box fuse block" width="1000" height="750" /> - The fuses controlling the instrument cluster in BMW E46 3 series vehicles are 10,34 and 43. Use a pair of needle nose pliers and pull each fuse to check their condition. If you find a blown fuse replace it...this may be the cause of your instrument cluster failure. If all of the fuses are fine, then proceed to the next step to check the power supply.

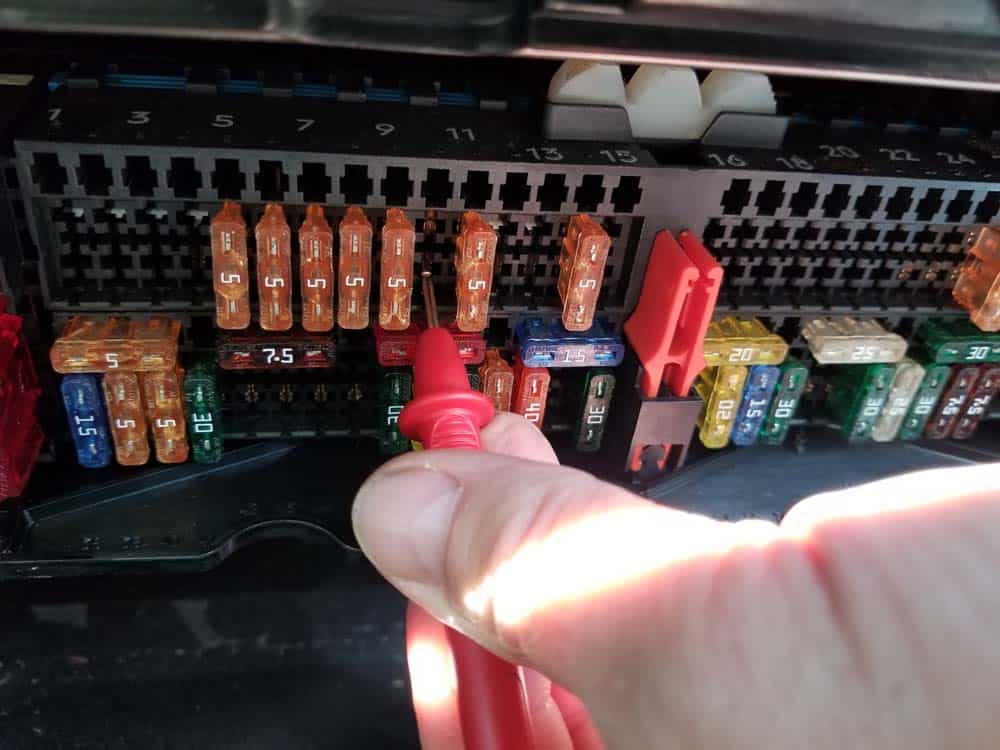

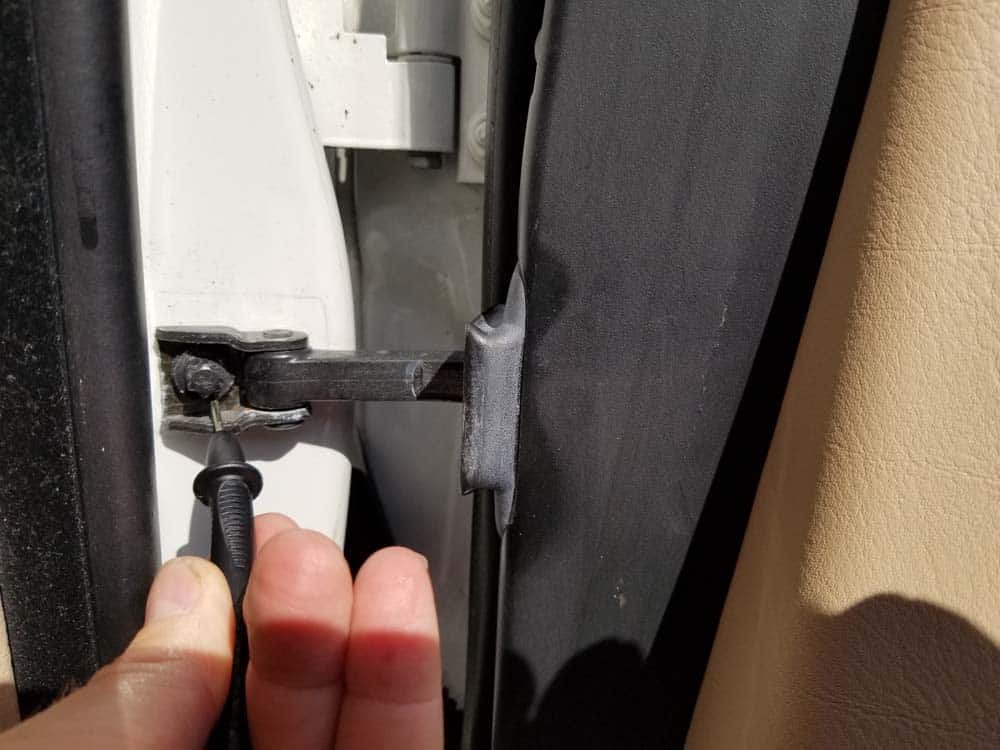

- The final step for diagnosing your instrument cluster failure is to verify that the fuses are receiving the proper voltage. Use a multimeter to check each fuse carrier to verify it is receiving 12 volts of power. Make sure your multimeter is properly grounded to insure a proper read out of the voltage - poor grounding will give you an incorrect value, or no show no voltage at all. We suggest using the hinge guide torx bolt as a ground as shown in the below image.
- If all of your fuses are intact and your multimeter shows 12 volts at each fuse, then you have an internal circuit board failure in your instrument cluster. You will need to remove the e46 instrument cluster and have it sent off to be professionally repaired. The following steps show you how.
Section 2 - Removing the BMW E46 Instrument Cluster from Dashboard
- Use a T15 torx bit to remove the two screws anchoring the instrument cluster to the dashboard.
torx screws in instrument cluster" width="4032" height="3024" /> - Use a plastic trim removal tool to gently pry the top of the instrument cluster free from the top of the dash.
- Pull the instrument cluster free of the dash and behind the left side of the steering wheel.

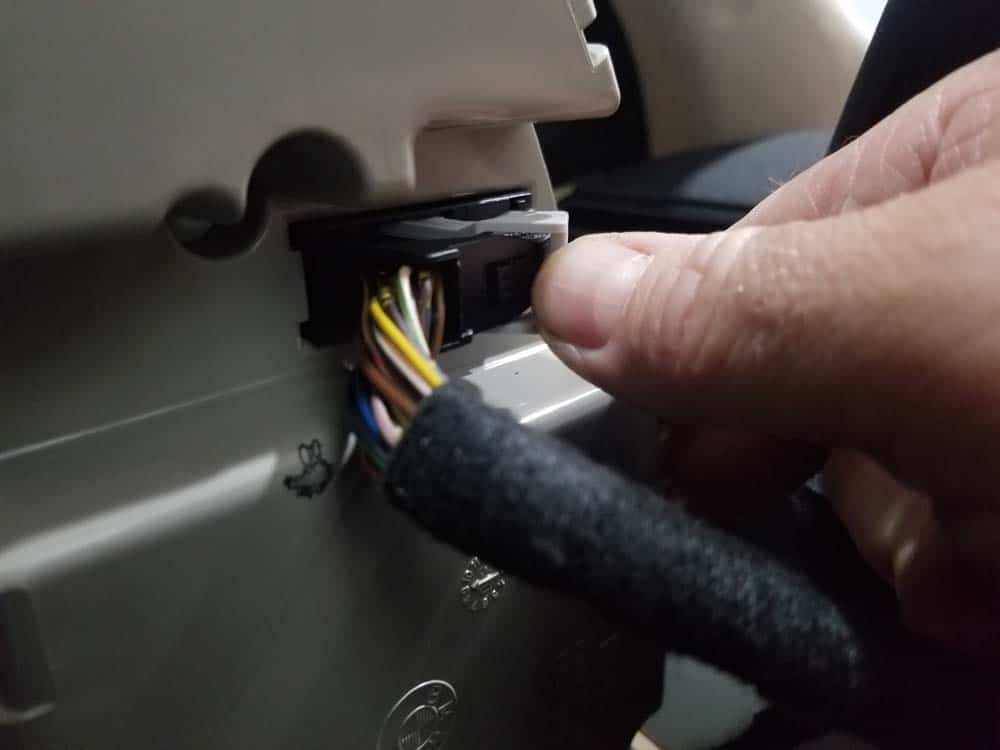

- Remove the two wiring harnesses from the back of the instrument cluster.
- Remove the instrument cluster from vehicle.
Section 3 - Repairing the BMW E46 Instrument cluster
As discussed at the beginning of this article, the BMW Repair Guide only recommends sending a damaged instrument cluster to a qualified auto electronics repair shop. The BMW Repair Guide uses Automotive Circuit Solutions to repair its damaged instrument clusters. We have found their technicians to be courteous and knowledgeable and their prices to be very reasonable.BMW E46 Instrument Cluster Repair Completed
