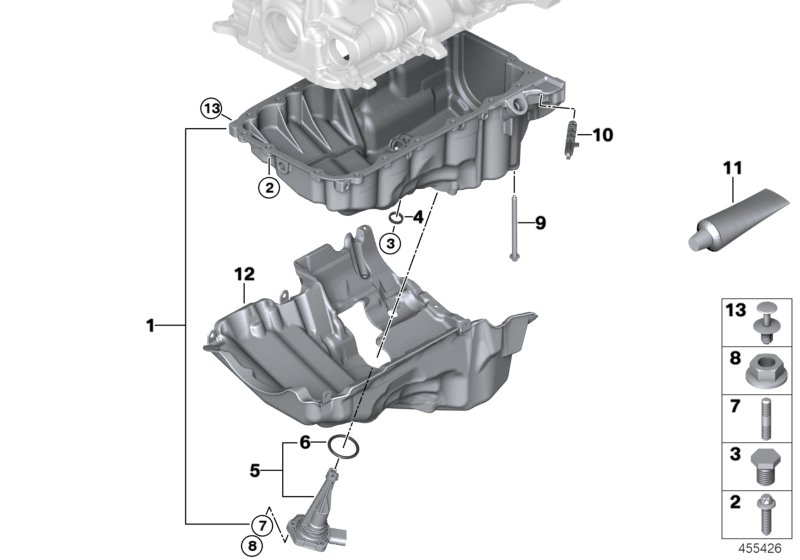

8B93 Oil Pan/oil Level Indicator
8B93 Oil Pan/oil Level Indicator-11_6372
Part Number 1
Oil Pan
2016,2017,2018 330i Sedan
BMW Part # 11138611694
Genuine BMW
Part Number 2
ASA-Bolt M8X30
2016,2017,2018 330i Sedan
BMW Part # 11138592611
Genuine BMW
Part Number 3
Screw plug M12X16
2016,2017,2018 330i Sedan
BMW Part # 11137535106
Genuine BMW
Part Number 4
Gasket ring A12X16-CU
2016,2017,2018 330i Sedan
BMW Part # 07119963132
Genuine BMW
Part Number 5
Oil levelling sensor 132,8MM
2016,2017,2018 330i Sedan
BMW Part # 12618638755
Genuine BMW
Part Number 6
Gasket
2016,2017,2018 330i Sedan
BMW Part # 12617604790
Genuine BMW
Part Number 7
Stud bolt M6X30-ZNNIV SI
2016,2017,2018 330i Sedan
BMW Part # 07129904544
Genuine BMW
Part Number 8
Hex nut M6-8-ZNNIV SI
2016,2017,2018 330i Sedan
BMW Part # 07119905544
Genuine BMW
Part Number 9
Torx bolt M8X110
2016,2017,2018 330i Sedan
BMW Part # 11137800625
Genuine BMW
Part Number 10
Blind plug
2016,2017,2018 330i Sedan
BMW Part # 11117536143
Genuine BMW
Part Number 11
Loctite 5970 liquid sealant 50ML
2016,2017,2018 330i Sedan
BMW Part # 83190404517
Genuine BMW
Part Number 12
Cover, acoustic
2016,2017,2018 330i Sedan
BMW Part # 11148514330
Genuine BMW
Part Number 13
Expanding rivet D = 8MM
2016,2017,2018 330i Sedan
BMW Part # 51471911992
Genuine BMW
<
