BMW M60 Intake Temperature Sensor Replacement – 8 Cylinder 5,7 and 8 Series Vehicles

Affiliate link disclosure – The BMW Repair Guide uses affiliate links in their site. For more information on affiliate links, please click here.
Repair Summary
The following article gives detailed instructions on replacing the intake temperature sensor in a BMW M60 8 cylinder engine. Even though we have used a 1995 840ci to perform this repair, this article can be applied to any vehicle with the M60 engine including the E32 740i and E34 540i and minor modifications.

Replacing a faulty BMW M60 intake temperature sensor can help cure a rough cold idle, engine misfires and acceleration issues.

The BMW M60 8 cylinder engine contains a plethora of sensors, all of which feed data to the vehicles DME (engine control module). This processed sensor data is used to control most of the M60 engine's systems, especially the fine-tuned delivery of air and fuel to the cylinders.
The BMW M60 intake temperature sensor is one of the most overlooked, yet critical engine sensors on the 8 cylinder motor. Its job is to continuously monitor the ambient air temperature inside the intake manifold prior to it entering the cylinders. This ambient temperature data is sent to the M60's DME where it is used to control the cylinder's air/fuel mixture, optimizing the vehicle's performance and emissions.
Like with most electronic parts in the engine compartment, age, oil contamination, and brutal heat conditions take their toll on the BMW M60 intake temperature sensor eventually causing it to malfunction. A failing sensor will read the intake air temperature incorrectly (or not at all), causing the air/fuel ratio to be miscalculated. Indications of a failing intake temperature sensor are often unmistakable; a rough cold idle, very poor cold engine acceleration, the engine surges when warm, cylinder misfires, and overall bad fuel economy.
Replacing the BMW M60 intake temperature sensor is a fairly simple procedure for the home mechanic, and can save an expensive trip to the repair shop. Please note that there are many other issues within the BMW M60s intake system that can cause a rough idle and poor performance...sometimes happening simultaneously. Even though the BMW M60 intake temperature sensor is inexpensive and easy to replace, it is good practice to do a thorough diagnosis of the intake system prior to completing this repair.
View the detailed parts diagram for this repair.
Includes detailed part diagrams, part numbers and links to purchase all of the required components needed to complete this repair.
Before starting this repair, you must have the following required parts.
All BMW models with M60 engine
This is the same factory intake air temperature sensor that would be installed at the BMW dealership.
All BMW models with M60 engine
The air filter must clean 8000-9000 gallons of air for each gallon of gasoline burned inside the engine, without restricting the air intake. Air filter replacement at recommended intervals lets an engine breathe properly while protecting it from costly damage. Air filters should be inspected and replaced as needed at least once a year, more often if the vehicle is driven in heavily polluted or dusty conditions.
category = 37category = 2353category = 2355category = 2354
Repair Steps
Section 1 - Replacing the BMW M60 Intake Temperature Sensor
The intake temperature sensor is very easy to replace on the M60 engine. The repair will go a lot easier if you take a few extra minutes and disconnect all of the surrounding electrical connections first.
  1. Remove the four 10mm nuts anchoring the top engine cover. Remove cover from engine compartment.bmw m60 intake temperature sensor replacement - Remove the engine cover.

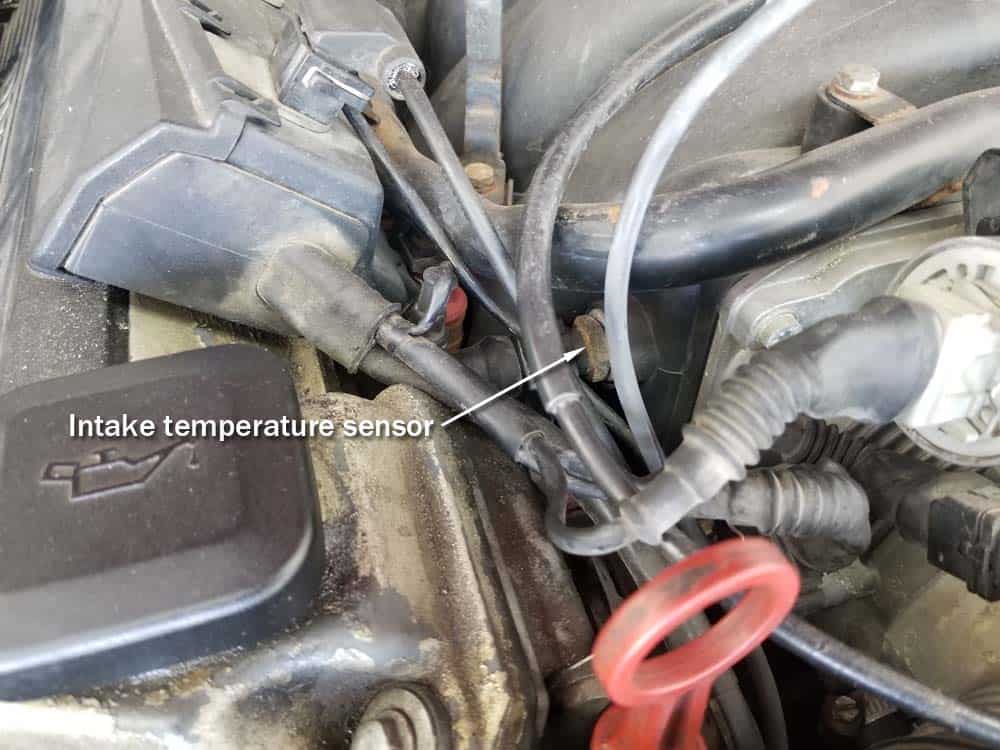

  2. Locate the BMW M60 intake temperature sensor. It is on the front right side of the intake manifold next to the throttle body.bmw m60 intake temperature sensor - Locate the temperature sensor on right side of engine.bmw m60 intake temperature sensor - Sensor location
  3. Disconnect the idle control valve by pinching in the metal release clip and pulling the plug free.bmw m60 intake temperature sensor - Disconnect the idle control valve Pull the plug out of the Idle control valve
  4. Next, disconnect the throttle body.bmw m60 intake temperature sensor - Disconnect the throttle body bmw m60 intake temperature sensor - Pull the plug from the throttle body
  5. Use a flatblade screwdriver to raise the metal locking clip on the throttle valve switch. Pull the plug free and gently stow out of the way.bmw m60 intake temperature sensor - Lift the metal locking clip on the mass air flow (MAF) sensor. bmw m60 intake temperature sensor - Disconnect the mass air flow sensor.
  6. Disconnect the 1st and 2nd engine wiring harness plugs by squeezing in the metal locking clips and pulling them free.bmw m60 intake temperature sensor - disconnect the 1st wiring harness plug. Disconnect the 2nd wiring harness plug.
  7. Pull all of the electrical connections and the throttle cable out of the way so you have clear access to the intake temperature sensor. bmw m60 intake temperature sensor - Clear all of the cables out of the way

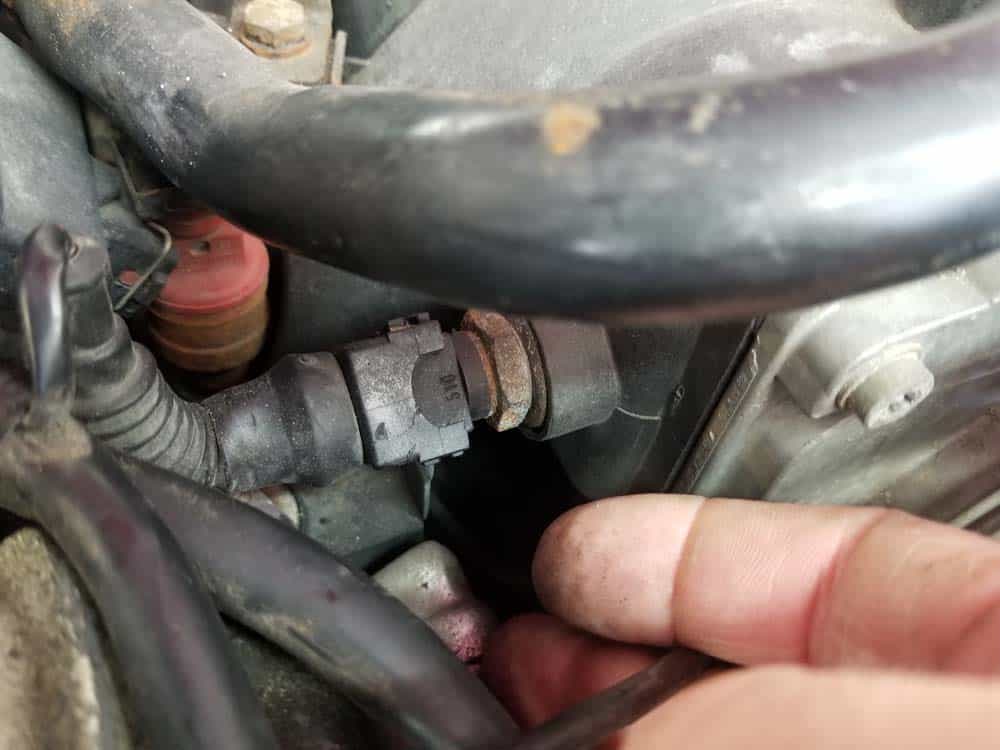

  8. Unplug the BMW E60 intake temperature sensor by depressing the metal locking clip and pulling the plug free. Sometimes the locking clip is on the backside of the plug making it difficult to depress...if it is, try using a metal pick to push it in as shown below.bmw m60 intake temperature sensor - Depress the metal clip and remove the sensor plug. Use a metal pick if the locking clip is on the back of the plug. bmw m60 intake temperature sensor - Use a metal pick to depress the clip if it is behind the plug. bmw m60 intake temperature sensor - Remove the plug from the sensor.
  9. Use a 19mm crow's foot or open end wrench to remove the sensor from the intake manifold. Notice the engine oil residue on the end of ours.bmw m60 intake temperature sensor - Remove the sensor with a 19mm wrenchThe intake manifold sensor. Notice the oil residue on the end of it.
  10. Spray the electrical connection with CRC Electronic Cleaner to remove any old oil or residue.CRC Electronic Cleanerbmw m60 intake temperature sensor - Thoroughly clean the sensor plug with CRC Electronic Cleaner
  11. Install the new sensor. If you are using a 19mm crow's foot, torque the sensor to 10 Nm (7.5  ft-lb). If you don't have a crow's foot and are using an open end wrench, tighten the sensor until it is snug. DO NOT over tighten the sensor...you can easily break it.bmw m60 intake temperature sensor - Torque the sensor to 10 Nm (7.5 ft-lb)
  12. Reassemble the engine making sure not to miss any of the plugs that were disconnected.
BMW M60 Intake Temperature Sensor Replacement Finished
