BMW E46 Headlight Removal – 1999-2005 3 Series Sedans/Touring

Repair Summary
EThis article provides detailed instructions for an E46 Headlight Removal. Even though we used a 2000 BMW 323i to perform this repair, this article can be applied to all 1999-2005 3 series sedans and wagons with minor modifications to the steps.

A BMW E46 Headlight Removal is a very simple repair for the home mechanic.

One of the most annoying issues to plague older BMW models are hazy or chipped headlight lenses. Years of ultra-violet light exposure combined with road debris and chemicals cause the acrylic lens of the E46 headlight to become oxidized or "foggy". This condition is not only aesthetically unpleasing, but it is also dangerous. Hazed or broken headlight lenses can severely limit the intensity of the light they emit, creating a hazardous condition during night driving or during inclement weather.
A BMW E46 headlight removal and replacement is a very simple procedure for the home mechanic and can save a very expensive trip to the dealership or independent repair shop. They are held in place with four screws...two on top of the light assembly and two behind it. Once the screws are removed, the headlight can be easily removed from the frame of the vehicle. Replacement headlights are readily available online (please see our parts list below) and installation is simple and quick.
It is important to note that there are several different versions of headlights in the BMW E46, so it is important that you get the right part number before ordering replacements. The E46 came with stock Halogen headlights and an optional xenon upgrade. Some models were also manufactured with ZKW halogen brand headlights. We suggest removing the headlight before ordering your replacement to ensure you get the proper part number.
For your convenience, we have listed all of the headlight variations for the 323i, 325i, 325xi, 328i, 328xi, 330i ,and 330xi models below in our parts section. We have also included the correct turn signals as an option as well.
Click the link below for our YouTube video on the BMW E46 headlight removal process. For more detailed instructions, please see our step-by-step procedures with photos below.
Required Parts

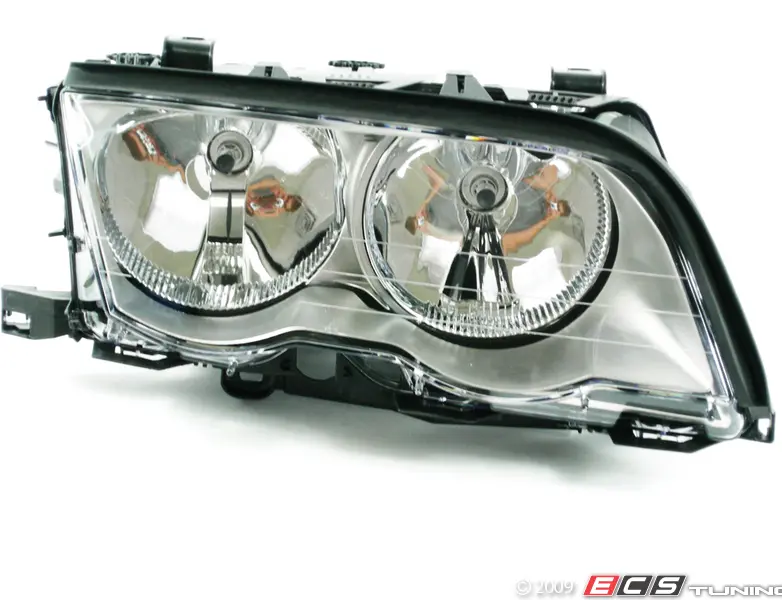

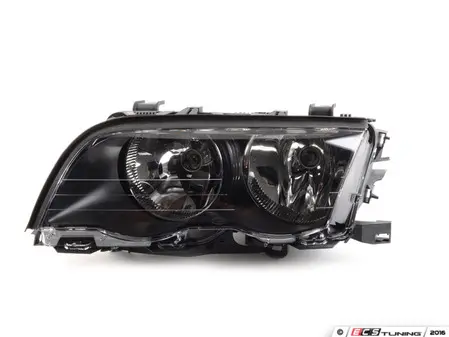

OEM

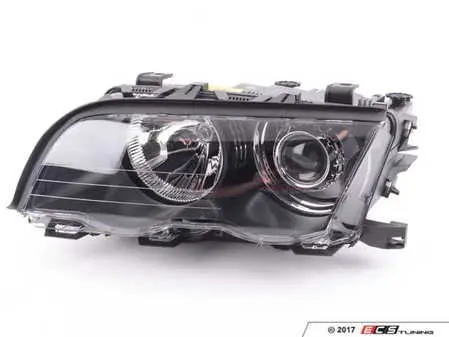

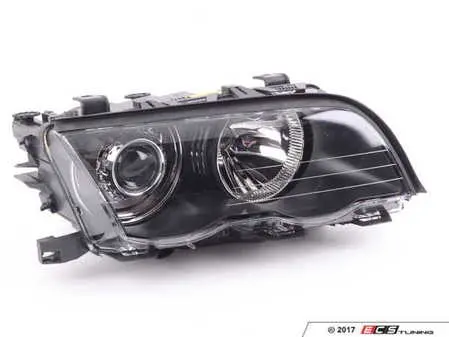

Fits BMW E46 up to 2001
Bosch is an OE supplier for most of the worlds automobile manufacturers. Bosch produces premium grade aftermarket parts for BMW that equal or surpass the original equipment installed in the vehicle.
OEM
Fits BMW E46 up to 2001
Bosch is an OE supplier for most of the worlds automobile manufacturers. Bosch produces premium grade aftermarket parts for BMW that equal or surpass the original equipment installed in the vehicle.

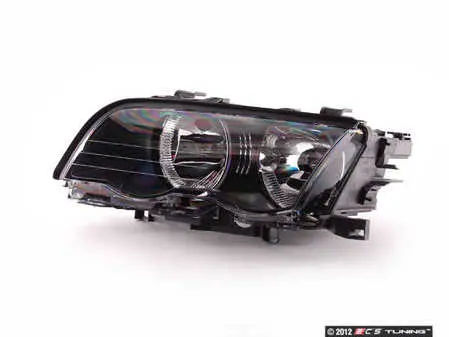

Factory Part
Fits BMW E46 up to 2001

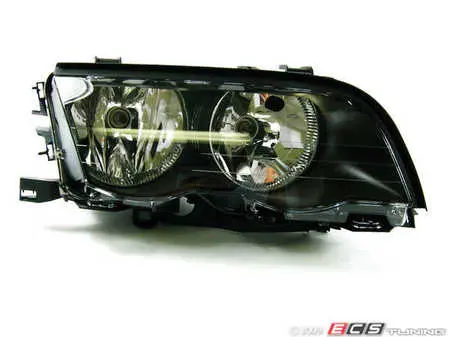

This is the same factory headlight assembly that would be installed at the BMW dealership. BMW E46
Factory Part
Fits BMW E46 up to 2001
This is the same factory headlight assembly that would be installed at the BMW dealership. BMW E46

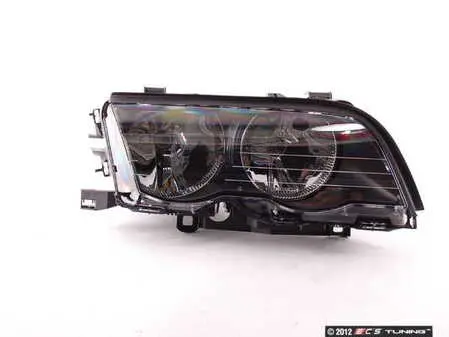

Fits BMW E46 up to 2001
This is a complete plug & play assembly for models that originally came with ZKW headlights.
Fits BMW E46 up to 2001
This is a complete plug & play assembly for models that originally came with ZKW headlights.

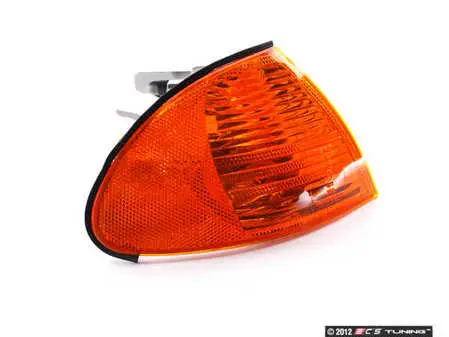

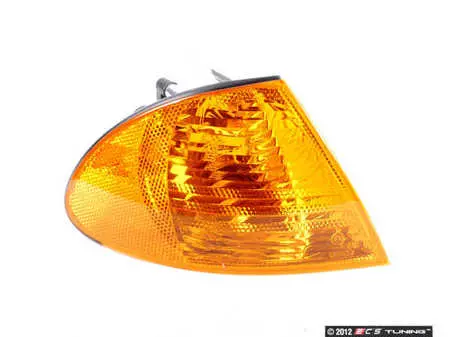

Factory Part
Fits BMW E46 up to 2001

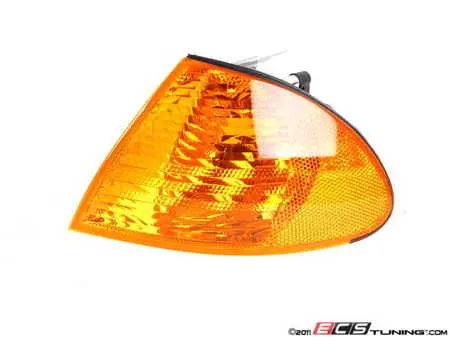

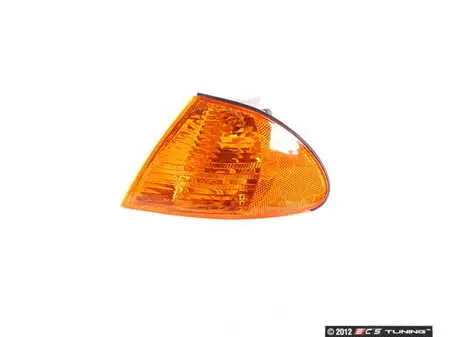

This is the same factory turn signal assembly that would be installed at the BMW dealership. BMW E46
Factory Part
Fits BMW E46 up to 2001
This is the same factory turn signal assembly that would be installed at the BMW dealership. BMW E46

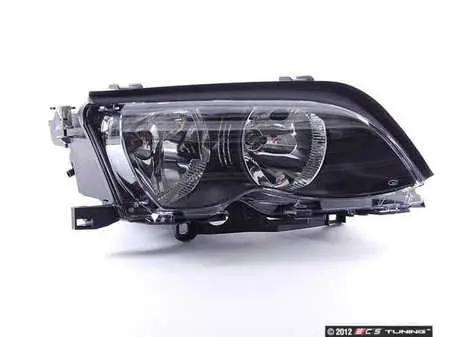

Fits BMW E46 from 2001 up

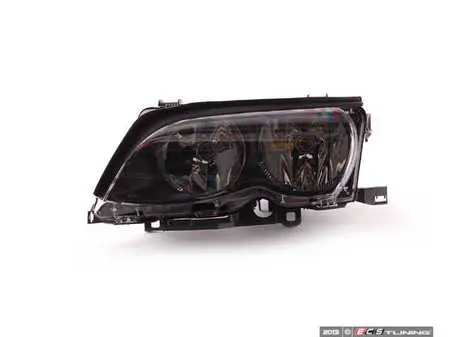

This piece from ZKW is the perfect replacement for worn or damaged headlight assemblies. Made to fit exactly like the original, this replacement will fit perfectly and provide the same functionality as the piece it is replacing.
Fits BMW E46 from 2001 up
This piece from ZKW is the perfect replacement for worn or damaged headlight assemblies. Made to fit exactly like the original, this replacement will fit perfectly and provide the same functionality as the piece it is replacing.
Factory Part
Fits BMW E46 from 2001 up
A limited amount of E46 3-Series models came equipped with a Titanium edition package. This headlight offers a drastically changed front end design when combined with clear corner indicators and side markers.
Factory Part
Fits BMW E46 from 2001 up
A limited amount of E46 3-Series models came equipped with a Titanium edition package. This headlight offers a drastically changed front end design when combined with clear corner indicators and side markers.

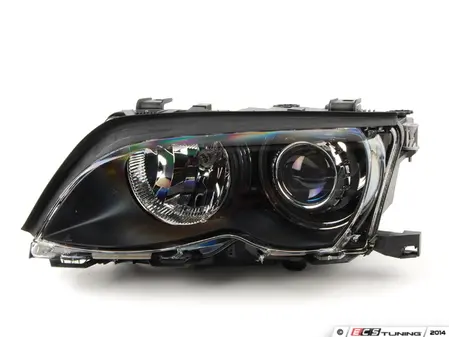

Fits BMW E46 from 2002 up

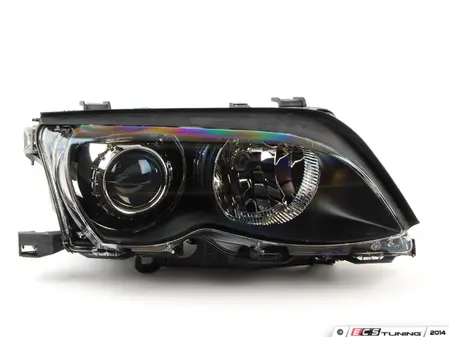

This is a complete E46 Xenon headlight assembly, including all components ready for plug and play.
Fits BMW E46 from 2002 up
This is a complete E46 Xenon headlight assembly, including all components ready for plug and play.

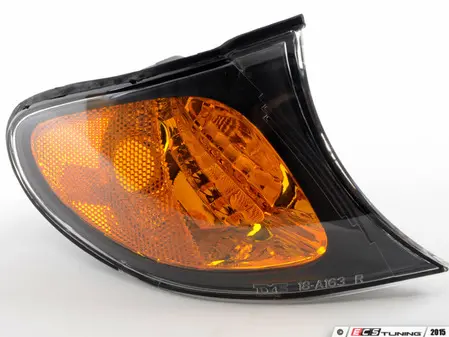

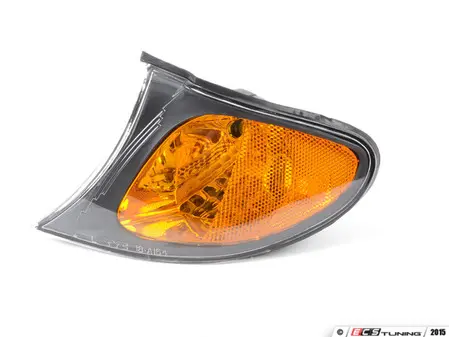

Fits BMW E46 from 2001 up
As an OEM manufacturer, TYC adheres to high quality standards that exceed customers’ expectation. By working closely with OEM partners and with intensive ongoing research and development, TYC provides superior quality aftermarket parts to most of the worlds automotive manufacturers.
Fits BMW E46 from 2001 up
As an OEM manufacturer, TYC adheres to high quality standards that exceed customers’ expectation. By working closely with OEM partners and with intensive ongoing research and development, TYC provides superior quality aftermarket parts to most of the worlds automotive manufacturers.

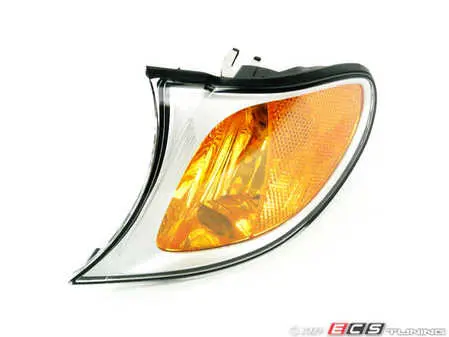

Factory Part
Fits BMW E46 from 2001 up

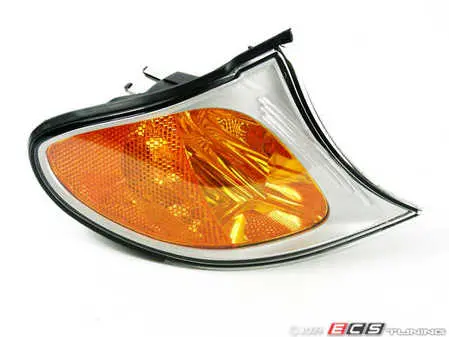

This is the same factory turn signal assembly that would be installed at the BMW dealership. BMW E46
Factory Part
Fits BMW E46 from 2001 up
This is the same factory turn signal assembly that would be installed at the BMW dealership. BMW E46
Repair Steps
Section 1 - Removing the Headlight
As discussed at the beginning of this article, the E46 headlight removal is a simple operation. It is held in place with four screws...two on top and two on the bottom. All of the screws can be easily reached from the engine compartment with very little effort.
  1. In order to remove the headlights from the front of your E46 sedan or touring wagon, the lower trim panels must be removed. Using a plastic trim removal tool, carefully pry the trim panel loose then use your fingers to remove it from the vehicle. bmw e46 headlight removal - Pry the lower trim loose with a plastic trim removal toolbmw e46 headlight removal - Pull the trim loose and remove from the vehicle
  2. Using an 8mm socket wrench, remove the top two mounting screws.Use an 8mm socket wrench to remove the top mounting screws
  3. Using a long screwdriver, release the side turn signal by inserting it into the hole behind the light assembly and pressing down on its release clip (see image below). Remove the turn signal from the vehicle.bmw e46 headlight removal - insert a screwdriver into the turn signal release holePress down on clip to release the turn signalbmw e46 headlight removal - Remove the turn signal from the vehicle
  4. There are two mounting screws on the bottom of the headlight...one located on the rear and one located interior towards the centerline of the vehicle. Use an 8mm socket wrench and a long extension to remove them.bmw e46 headlight removal - remove the first lower mounting screw with an 8mm socket wrenchThe location of the first lower mounting screwbmw e46 headlight removal - Remove the second lower mounting screwThe location of the second lower mounting screw
  5. You can now grasp your E46 headlight and pull it free from the vehicle.Pull the headlight free so the bulb connections can be remove
  6. With the headlight free, unplug the two electrical connectors and remove it from the vehicle.bmw e46 headlight removal - Unplug the bulbs and remove the headlight from the vehicle
BMW E46 Headlight Removal Finished
